Modular UPS systems

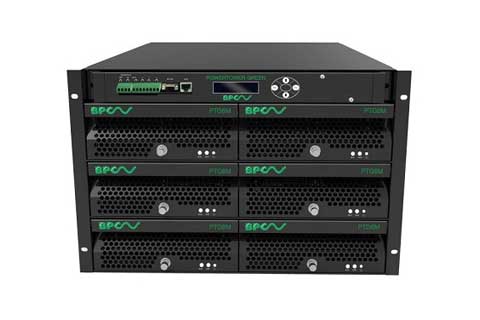

PowerTower Green RIT06

The PowerTower Green RIT06 series is a rack-independent modular UPS of low and medium power developed by BPC.

With a flexible structure, it can be embedded into any standard 19" cabinet and can be configured to operate in any requirement.

Ranging from 6-36kVA using 6kVA modules in a functional rack-independent solution, the PowerTower Green RIT06 Series is ideal for the space-conscious enterprise networking manager.

Download Brochure
  • Rack Independent
  • Modular Construction Design
  • Hot Swappable
  • Multiple User Options
  • N+X module level redundancy
  • 1/1, 3/1, 1/3 and 3/3 configuration via display
  • Multi-level decentralised control technology and master-slave synchronisation in sequence control eliminating system failure bottleneck
  • Each module equally shares the input and output current automatically
  • All UPS modules share the batteries
  • Battery discharge management
  • Auto-transfer between floating and equal charging
  • Temperature Compensation
  • C/S-Orientated Architecture Software available to monitor multiple UPS up to 600 sets
  • B/S-Orientated Architecture available to check via internet browser
  • Multiple user options: RS232, RS485, dry contacts, TCP/IP adaptor for local and remote communication
  • Optional input/output transformer
  • Optional battery IPDS (Intelligent Power Distribution System)

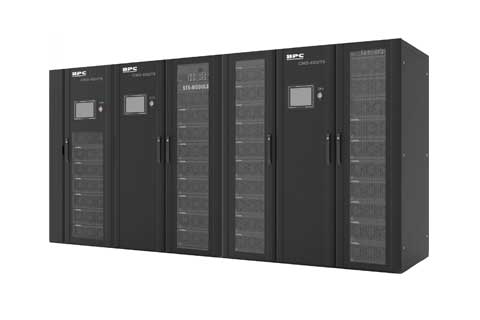

    • PowerTower Green CMS Series

    BPC Energy introduces 15kVA, 25kVA, 50kVA, and 75kVA modules, offering vertical and horizontal scalability from 15kVA to 1200kVA in single dedicated cabinets, with parallel options up to 4.8MVA. Designed for data centres and critical applications, the PowerTower Green CMS Range achieves over 96.5% efficiency in online double conversion mode and above 96% at 30-50% loads. ECO mode offers 99% efficiency with a slight break in power when switching back to the inverter. The “SMART Energy” option in PTG25UM/PTG50UM & PTG75UM modules offers up to 98.8% efficiency in Ultra Saving Line Mode, reducing operating costs during peak loading.

    Download Brochure
  • Dynamic Airflow & Dust Filters
  • High Load Adaptability
  • True Hot Swap Capability
  • Optimised Capital Investment
